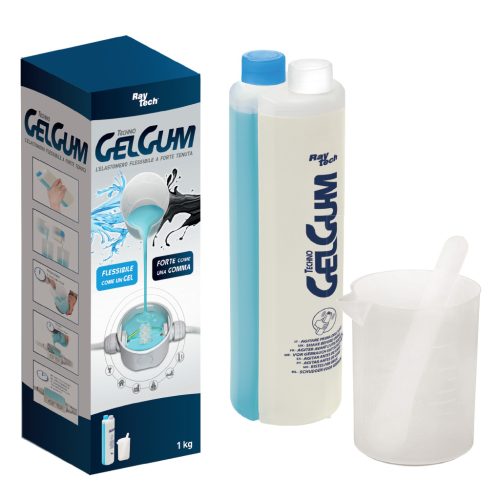

Single bottle two-component insulation with very high dielectric, thermal and sealing characteristics. Waterproof and re-enterable!
Techno Gel Gum is a strong hold flexible elastomer whose formula has been optimised for the protection of POWER CABLE, TELECOM CABLE and ELECTRONIC CIRCUIT connections. A new recipe that gives the product a surprising, original texture that combines the characteristics of GEL and RUBBER to emphasise its features. It’s elastic and flexible like gel, but also tough and dry like rubber.
- For installations up to 1 kV
- Suitable for high temperatures
- Even suitable for high depths under water
- Waterproof > 1 MPa
- UV resistant
- Removable
- Vibration resistant can act as a damper
- Suitable for installation in salt water (sea) and in chlorinated water (pools)
- Non toxic and safe
Dielectric strength:
≥ 21 kV/mm
Cross linking time:
fast (about 10 min. at 25°C)
Volume resistivity:
> 1015 Ω cm
Operating temperature:
-60°C / +200°C
Overload temperature for short periods:
up to 250°C
Stabilised for:
mould-UV
Degree of protection:
IP68 (in proper casings)
TECHNO GEL GUM 500
TECHNO GEL GUM
