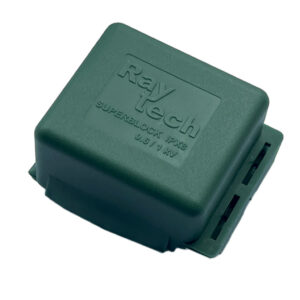

Super Block

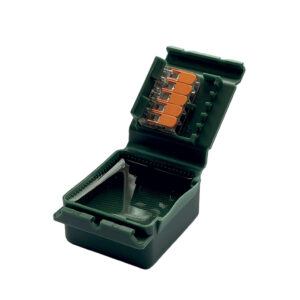

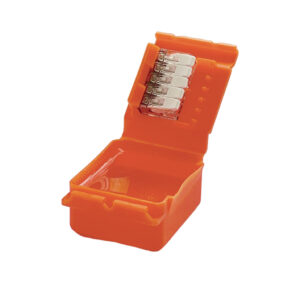

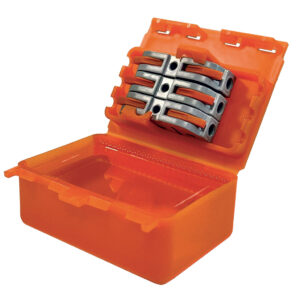

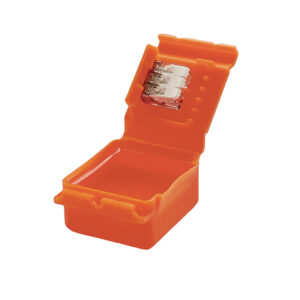

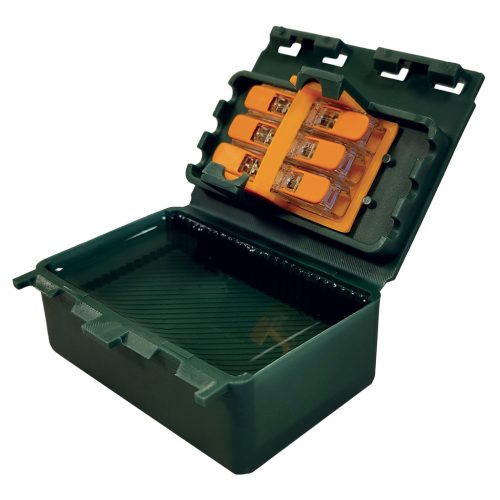

The new Gel Box with integrated lever connectors: ready, complete, submersible and compact.

ADVANTAGES

  • For straight or branch connections of 3 or 5 rigid or flexible wires up to 4 mm².
  • Tool-less.
  • Can be powered immediately – Always re-enterable.
  • Pre-filled with conforming viscoelastic gel, not classified as hazardous.
  • Reusable.
  • Without shelf-life.

Electrical performance:
• CEI EN 50393 as applicable (testing under water head of the accessory installed in a box).
• Class 2 in accordance with CEI 64-8.
• CEI EN 60998-1 – CEI EN 60998-2
Gel: UL 94-HB
Working temperature: 90°
Installation temperature: -40°C / +50°C
Fully submersible
Can be used underground
Halogen-free Gel
UV resistant

Data Sheet

Part NumberUp to
SUPERBLOCK33 x 4mm²
SUPERBLOCK3W3 x 4mm²
SUPERBLOCK55 x 4mm²
SUPERBLOCK5W5 x 2.5mm²
SUPERBLOCKINOUTM3 x 4mm²
SUPERBLOCKINOUTW3 x 4mm²
