Lucas Smart Doorbell
LS-DOORBELL
Details
Full Spec
Box Contents
| Details | |
| Video Resolution | 2K Ultra HD |
| Viewing Angle | 165° Diagonal |
| Wi-Fi | 2.4GHz |
| Battery | 5200mAh Rechargeable |
| Battery Life | Up to 6 Months* |
| Night Vision | Up to 5 Metres |
| Weather Resistance | IP65 Rated |
| Storage | MicroSD Card (Up to 128GB) Cloud Storage Available |
| Power Input | DC 5V/1.5A or AC 8-24V |
| Operating Temperature | -20°C to +50°C |
| Audio, Video & Connectivity | |
| Resolution | 2K |
| Video Encoder | Main Stream (HD): H.265; Substream (SD): H.264 |
| Video Bitrate | Main Stream (HD): 1Mbps; Substream (SD): 384Kbps |
| Video Frame Rate | Main Stream (HD): 15fps; Substream (SD): 20fps |
| Lens | Focal Length: 2.5mm; Aperture: F2.2 |
| Viewing Angle | Diagonal 165°; Vertical 126°; Horizontal 95° |
| Video Codec Standard | H.265/H.264 |
| Voice Intercom | Supports bidirectional voice intercom and echo cancellation |
| Audio Input | 1 Microphone |
| Audio Output | 1 Speaker |
| Indicator Light | Green/Blue dual-colour indicator. Blue indicates device status and green indicates charging |
| Infrared Lamp | 850nm Infrared Lamps |
| Night Vision Mode | Automatic IR-CUT Switching |
| Night Vision Distance | Maximum 5m |
| Wireless Connection | 2.4GHz Wi-Fi IEEE 802.11 b/g/n |
| Smart Detection & Voice | |
| Motion Detection | Supports PIR body movement detection |
| Human Detection | Accurate humanoid detection for smarter alerts |
| Package Detection | Smart package detection with real-time alerts (cloud algorithm detection, free for the product life cycle) |
| Quick Reply | Quick replies using pre-set voice messages when unable to answer |
| Voice Change | Multiple preset voice options help conceal your true identity for safer communication |
| Message Function | Supports visitor video messages when unanswered, with notifications sent to the app |
| Chime, Storage & Integrations | |
| Chime | 8 customisable sounds, 3-level volume control and app control |
| Lucas Smart Cloud Storage | Supports event video storage |
| Amazon Alexa | Supported |
| Google Assistant | Supported |
| Local Storage | Micro SD Card (Maximum 128GB) Cloud Storage Available |
| Power, Battery & Environment | |
| Power Supply | DC 5V/1.5A or AC 8-24V/200mAh |
| Certification | CE / FCC / RoHS / REACH |
| Battery Type | Rechargeable, non-removable, charge protected |
| Battery Capacity | 5200mAh |
| Battery Life | 4–6 Months (10 wake-ups per day) |
| Working Temperature | -20°C to +50°C |
| Working Humidity | 10–95%, Non-Condensing |
| What’s In The Box | |

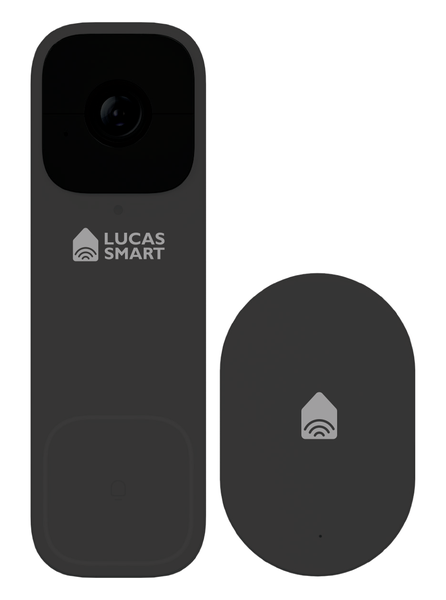

| Smart Battery Doorbell | x1 |

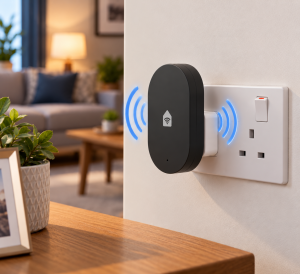

| Chime | x1 |
| Mounting Bracket | x1 |
| Power Cord | x1 |
| Adhesive Mounting Plate | x1 |
| Screw Hole Positioning Card | x1 |
| Screw Pack | x1 |
| Wire Nuts | x2 |
| Disassembly Needle | x1 |
| Wire Jumper | x1 |
| AC Power Extension Cord | x2 |
